Segment Trees & Fenwick Trees

Prefix sums answer range-sum queries in $O(1)$, but only for a static array — changing one element means rebuilding every prefix sum after it, an $O(n)$ update. The problem these two structures solve is "range query and point update, both fast" — a combination a plain array or a prefix-sum table cannot give at the same time.

Both get there the same way: precompute partial answers over ranges, arranged so that any query range decomposes into a small number of precomputed pieces, and any update touches only the pieces that cover the changed index. A segment tree makes this explicit as a binary tree — each node owns a contiguous range, the root owns the whole array, and every internal node's range is the union of its two children's. A Fenwick tree (binary indexed tree, BIT) gets the same $O(\log n)$ bounds with a single flat array and no explicit tree at all, at the cost of being far less general — it handles prefix-sum-like queries only, where a segment tree handles any associative, invertible-or-not combining operation (sum, min, max, gcd).

Neither structure earns its complexity for a problem that never updates: use prefix sums instead and call it $O(1)$ per query. These are for a sequence of interleaved range queries and point updates on the same array.

Prerequisites

Comfortable with prefix sums as the static-array baseline these structures generalise, and with trees as a recursive parent/child structure.

Core Concepts

Term	Meaning
Segment / range	The contiguous slice [lo, hi] a tree node is responsible for
Range query	Combine the array's values over [l, r] using the tree's operation (sum, min, ...)
Point update	Change one array element and fix every node whose range contains it
Lazy propagation	Defer a pending range update at a node until a query actually descends into it
i & -i (lowbit)	Isolates the lowest set bit of i — the size of the range Fenwick index i owns
1-indexing (Fenwick)	Fenwick trees index from 1; i & -i on index 0 is 0 and breaks the traversal

Mechanism

Both structures traced over the same array, a = [3, 1, 4, 1, 5, 9, 2, 6] (indices 0–7), with the operations sum(2, 5), then update(3, 10) (index 3's value 1 becomes 10), then re-query sum(2, 5).

Segment tree: the recursive split

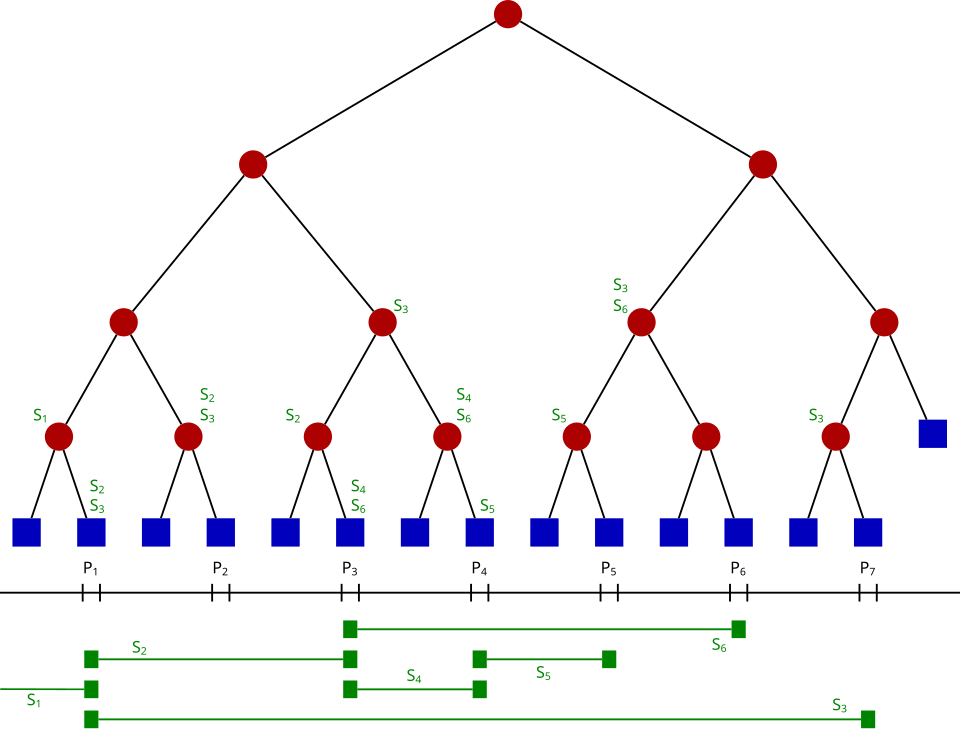

The classical (interval-stabbing) segment tree: each interval S1–S6 is stored at the small number of canonical nodes that exactly cover it, so a query touches O(log n) nodes regardless of how many intervals overlap there. The array-range-sum segment tree traced below is the same recursive-split idea specialised to array positions instead of arbitrary intervals. Wikimedia Commons, CC BY-SA 4.0

A sum segment tree stores node[v] = sum(lo(v), hi(v)). Building recurses: a leaf's sum is its one element; an internal node's sum is its children's sum added together — the same "combine two halves" shape as mergesort, but the tree itself persists instead of being thrown away after one pass.

build over [3, 1, 4, 1, 5, 9, 2, 6]:

                         [0,7]=31
                 [0,3]=9              [4,7]=22
             [0,1]=4     [2,3]=5   [4,5]=14   [6,7]=8
            [0]=3 [1]=1 [2]=4 [3]=1 [4]=5 [5]=9 [6]=2 [7]=6

sum(2, 5): decomposes into [2,3]=5 and [4,5]=14 — two nodes, no leaf touched individually
         → 5 + 14 = 19

update(3, 10): a[3] changes 1 → 10. Every ancestor of leaf [3] is refreshed bottom-up:
  [2,3]: 4+1=5  → 4+10=14
  [0,3]: 4+5=9  → 4+14=18
  [0,7]: 9+22=31 → 18+22=40
  ([4,7] and everything under it is untouched — [3] is not in its range)

sum(2, 5) again: [2,3]=14 and [4,5]=14 → 28  (was 19, +9 matches the value change 10−1)

sum(2, 5) touches exactly the two nodes whose ranges tile [2, 5] with no overlap and no gaps — that tiling into $O(\log n)$ pieces, never more, is the structural guarantee a segment tree gives for any query range (CLRS 4th ed., §17.3 covers the closely related interval trees; the range-decomposition argument here follows the standard competitive-programming construction, e.g. Halim & Halim, Competitive Programming, 4th ed., §2.5).

Fenwick tree: index arithmetic instead of pointers

A Fenwick tree stores the same information with no explicit tree and no pointers — one flat array, 1-indexed, where tree[i] covers the range (i - lowbit(i), i]. lowbit(i) = i & -i isolates the lowest set bit: in two's-complement, -i is ~i + 1, so every bit of i below its lowest set bit is flipped from 0 to 1 in ~i and then carried back to 0 by the +1, while the lowest set bit itself and everything above it survive the flip — i & -i keeps exactly that one bit (see Integers & Two's Complement for the full two's-complement derivation). For i = 12 = 0b1100, -12 = 0b...110100, and 12 & -12 = 0b0100 = 4.

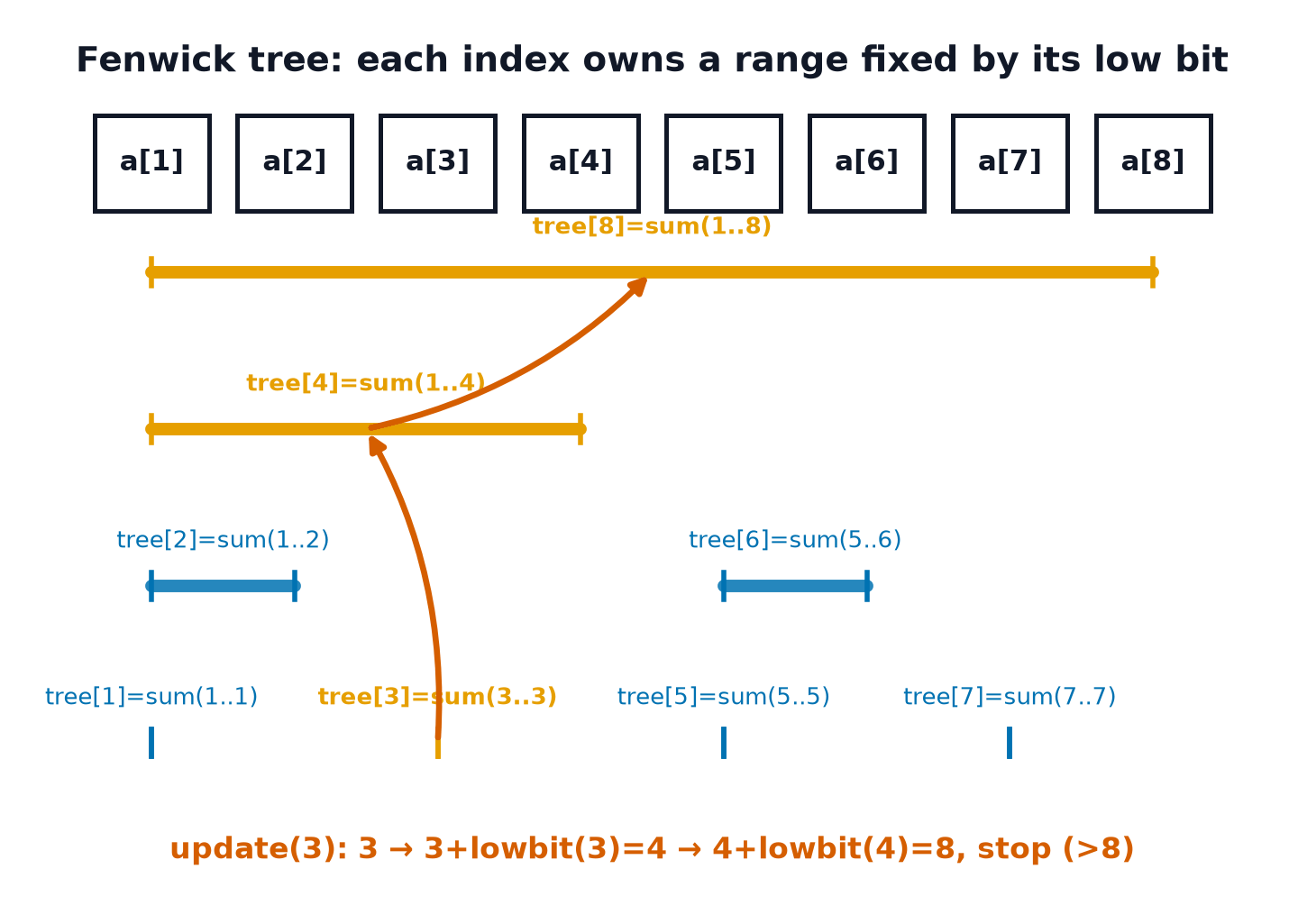

Index i owns the range (i − lowbit(i), i]. update(3) climbs by repeatedly adding lowbit: 3 → 4 → 8, touching exactly the ancestors whose range contains index 3.

update(index 3, +9):  # 1-indexed Fenwick position 4 = array index 3, delta = 10 - 1 = +9
  i=4:  4 & -4 = 4  → tree[4] += 9,  i becomes 4+4=8
  i=8:  8 & -8 = 8  → tree[8] += 9,  i becomes 8+8=16, stop (>8)
  (tree[1..3], tree[5..7] untouched — none of their ranges contain position 4)

query(prefix sum up to position 5, i.e. array index 4):
  i=5:  5 & -5 = 1  → add tree[5], i becomes 5-1=4
  i=4:  4 & -4 = 4  → add tree[4], i becomes 4-4=0, stop
  prefix(5) = tree[5] + tree[4]

sum(2, 5) [array indices] = prefix(6) - prefix(2), each computed by the same climb-down-by-lowbit loop

Update climbs up by repeatedly adding lowbit(i); a prefix query climbs down by repeatedly subtracting it. Both loops run at most $O(\log n)$ times because each step clears at least one more bit of i (Fenwick's original note: P. M. Fenwick, "A New Data Structure for Cumulative Frequency Tables," Software: Practice and Experience 24(3), 1994).

Lazy propagation

A segment tree's point update touches $O(\log n)$ nodes because only one leaf changes. A range update — "add 5 to every element in [2, 6]" — naively touches every leaf in that range, $O(n)$ in the worst case. Lazy propagation fixes this by stamping the update on the $O(\log n)$ nodes that exactly tile [2, 6] and recording a pending delta on each, instead of pushing it down to every leaf immediately. A later query that needs to descend past a node with a pending delta pushes it one level down first — so the cost is paid only by queries that actually need to see inside that subtree, not upfront. This section names lazy propagation and states what it buys — $O(\log n)$ range updates as well as range queries — without deriving the push-down bookkeeping in full; see the references for the complete construction.

Python

class SegmentTree:
    """Sum segment tree, 0-indexed, no lazy propagation (point updates only)."""

    def __init__(self, data):
        self.n = len(data)
        self.tree = [0] * (2 * self.n)
        self.tree[self.n:] = data
        for i in range(self.n - 1, 0, -1):        # build bottom-up: O(n)
            self.tree[i] = self.tree[2 * i] + self.tree[2 * i + 1]

    def update(self, i, value):
        i += self.n
        self.tree[i] = value
        while i > 1:                               # O(log n): one hop per level
            i //= 2
            self.tree[i] = self.tree[2 * i] + self.tree[2 * i + 1]

    def query(self, left, right):                  # sum over [left, right), half-open
        result, left, right = 0, left + self.n, right + self.n
        while left < right:                         # O(log n)
            if left & 1:
                result += self.tree[left]
                left += 1
            if right & 1:
                right -= 1
                result += self.tree[right]
            left //= 2
            right //= 2
        return result


class Fenwick:
    """1-indexed binary indexed tree over n elements, all zero initially."""

    def __init__(self, n):
        self.n = n
        self.tree = [0] * (n + 1)

    def add(self, i, delta):                        # i is 1-indexed
        while i <= self.n:                           # O(log n)
            self.tree[i] += delta
            i += i & (-i)

    def prefix_sum(self, i):                         # sum of positions 1..i
        total = 0
        while i > 0:                                 # O(log n)
            total += self.tree[i]
            i -= i & (-i)
        return total

    def range_sum(self, left, right):                # 1-indexed, inclusive
        return self.prefix_sum(right) - self.prefix_sum(left - 1)

C++

#include <vector>

class SegmentTree {                                  // iterative, 0-indexed, sum, point update
public:
    explicit SegmentTree(const std::vector<int>& data) : n_(data.size()), tree_(2 * n_) {
        for (int i = 0; i < n_; ++i) tree_[n_ + i] = data[i];
        for (int i = n_ - 1; i > 0; --i) tree_[i] = tree_[2 * i] + tree_[2 * i + 1];
    }
    void update(int i, int value) {
        i += n_;
        tree_[i] = value;
        for (i /= 2; i >= 1; i /= 2) tree_[i] = tree_[2 * i] + tree_[2 * i + 1];
    }
    long long query(int left, int right) {            // [left, right)
        long long result = 0;
        for (left += n_, right += n_; left < right; left /= 2, right /= 2) {
            if (left & 1) result += tree_[left++];
            if (right & 1) result += tree_[--right];
        }
        return result;
    }
private:
    int n_;
    std::vector<long long> tree_;
};

class Fenwick {                                       // 1-indexed
public:
    explicit Fenwick(int n) : n_(n), tree_(n + 1, 0) {}
    void add(int i, long long delta) {
        for (; i <= n_; i += i & (-i)) tree_[i] += delta;
    }
    long long prefix_sum(int i) {
        long long total = 0;
        for (; i > 0; i -= i & (-i)) total += tree_[i];
        return total;
    }
    long long range_sum(int left, int right) { return prefix_sum(right) - prefix_sum(left - 1); }
private:
    int n_;
    std::vector<long long> tree_;
};

Practical Usage

a = [3, 1, 4, 1, 5, 9, 2, 6]

seg = SegmentTree(a)
assert seg.query(2, 6) == 19            # sum(2, 5) inclusive == query(2, 6) half-open
seg.update(3, 10)                       # a[3]: 1 -> 10
assert seg.query(2, 6) == 28            # 19 + (10 - 1)

fen = Fenwick(len(a))
for i, v in enumerate(a, start=1):      # Fenwick is 1-indexed
    fen.add(i, v)
assert fen.range_sum(3, 6) == 19        # positions 3..6 == array indices 2..5
fen.add(4, 9)                           # array index 3 (position 4): +9, matching 1 -> 10
assert fen.range_sum(3, 6) == 28

• Neither language ships either structure. As with union-find, this is code you write, because the combining operation (sum, min, max, xor, gcd) is problem-specific; C++'s <numeric> std::partial_sum covers only the static prefix-sum case.
• Order statistics. A Fenwick tree over a "count of values ≤ x" array answers "how many inserted values are ≤ x" as a prefix sum, and "what is the k-th smallest value" via a binary search over the tree itself.
• Range-minimum/maximum queries (RMQ). A segment tree generalises directly by swapping + for min/max; a Fenwick tree cannot do plain RMQ because min has no inverse — no subtraction undoes a min the way it undoes a sum.
• Competitive programming judges (Codeforces, AtCoder) treat both as standard library knowledge — neither has a canonical open-source implementation worth depending on for a one-off problem.

Edge Cases & Pitfalls

• 0-indexing a Fenwick tree. i & -i on i = 0 is 0, so both the update and query loops either never execute or loop forever depending on the loop condition. Fenwick trees are 1-indexed by construction; convert array index k to Fenwick position k + 1 at every call site.
• Off-by-one in half-open vs. inclusive ranges. The segment tree implementation above takes half-open [left, right); the Fenwick wrapper takes inclusive [left, right]. Mixing the two conventions in one codebase is the single most common bug in either structure — pick one and wrap the other to match.
• Using a Fenwick tree for a non-invertible operation. range_sum works because prefix_sum(r) - prefix_sum(l-1) undoes the combination. There is no analogous subtraction for min, max, or gcd — those need either a segment tree or two Fenwick trees plus extra bookkeeping (sparse-table-style tricks), not the plain BIT above.
• Forgetting to push down lazy state before reading it. A range-update segment tree that checks a node's stored value without first pushing its pending delta to children returns a stale answer for any query that needed to descend past that node.
• Rebuilding from scratch on every update. Both structures exist specifically so that a single point change costs $O(\log n)$, not $O(n)$. Recomputing prefix sums after every update — the naive fallback — throws away the entire reason to use either structure.

Comparisons

	Segment tree	Fenwick tree	Prefix sums
Range query, sum (worst)	$O(\log n)$	$O(\log n)$	$O(1)$
Point update (worst)	$O(\log n)$	$O(\log n)$	$O(n)$ — rebuild the suffix
Range update with lazy propagation (worst)	$O(\log n)$	Needs a second BIT trick	$O(n)$
Supported operations	Any associative op: sum, min, max, gcd, xor	Only invertible ops: sum, xor	Sum only
Memory	$O(n)$, roughly $4n$ node slots as commonly implemented	$O(n)$, exactly one array	$O(n)$
Code size	Larger — explicit tree, optional lazy layer	A dozen lines, no pointers	Trivial

Reach for a Fenwick tree first when the operation is sum-like and the problem is competitive-style — less code, same bound. Reach for a segment tree when the operation isn't invertible, or when a query needs more than a single number back (e.g. "the index of the minimum," not just its value).

Recall

InvariantA segment tree node's range is the union of its children's; a Fenwick index i owns exactly the range (i − lowbit(i), i]. Either way, any query range decomposes into $O(\log n)$ precomputed pieces.

Costs

range query, either structure (worst)$O(\log n)$

point update, either structure (worst)$O(\log n)$

range update with lazy propagation (worst)$O(\log n)$, segment tree only

build from n elements (worst)$O(n)$

static range sum, no updates (worst)$O(1)$ with prefix sums — no tree needed

Reach for itRange queries interleaved with point (or range) updates on the same array — a segment tree for any associative combiner, a Fenwick tree specifically for sums or other invertible operations.

TrapReaching for a Fenwick tree for range-minimum queries — min has no inverse, so prefix(r) − prefix(l−1) does not give a range answer the way it does for sum.

References

• P. M. Fenwick, "A New Data Structure for Cumulative Frequency Tables," Software: Practice and Experience 24(3), 1994 — the original binary indexed tree, including the i & -i traversal derived above.
• Halim, S. & Halim, F., Competitive Programming, 4th ed., §2.5 "Segment Tree" and §2.5 "Fenwick Tree" — the standard competitive-programming construction this page's implementations follow, including the iterative (pointerless) segment tree layout.
• Cormen, Leiserson, Rivest & Stein, Introduction to Algorithms, 4th ed., §17.3 "Interval trees" — the closest CLRS analogue: an augmented balanced tree answering range-overlap queries in $O(\log n)$, via the same "decompose into a small number of precomputed pieces" idea.
