The Data Link Layer

Overview​

The data link layer is responsible for moving frames between devices on the same local network segment — the "last hop" addressing problem, solved before a packet ever needs to think about routing across the wider Internet. On virtually every modern wired or Wi-Fi LAN, this layer means Ethernet framing and addressing, whether or not there's an actual Ethernet cable involved.

Core Concepts​

TermMeaning
FrameThe data-link-layer PDU: a header (source/destination MAC, type) + payload + trailer (checksum).
MAC addressA 48-bit address burned into (or configured on) a network interface, unique on the local network.
OUI (Organizationally Unique Identifier)The first 24 bits of a MAC address, assigned by the IEEE to the manufacturer (e.g., all of Apple's interfaces share a set of OUIs).
Collision domainA set of devices where two simultaneous transmissions can collide — everything on one old-style hub, or one half-duplex segment.
Broadcast domainA set of devices that all receive a broadcast frame — everything on one switch (or set of switches) without a router between them.
ARP (Address Resolution Protocol)The protocol that resolves "what MAC address does this IP address belong to?" on a local network.

Architecture / Mechanism​

MAC Address Structure​

A MAC address is 48 bits, conventionally written as six colon-separated hex bytes:

3C:22:FB:12:34:56
└──OUI (24 bits)─┘ └device-specific (24 bits)┘
   assigned to        assigned by the
   the vendor by       vendor to a
   the IEEE            specific interface

The frame those addresses live in​

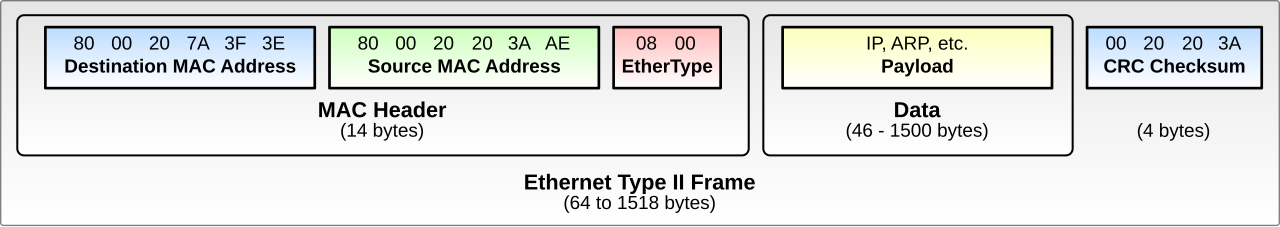

An Ethernet Type II frame: a 14-byte MAC header of destination address, source address and EtherType, then a 46 to 1500 byte payload, then a 4-byte CRC checksum
An Ethernet Type II frame. Fourteen bytes of header, up to 1500 bytes of payload, four bytes of CRC — and the EtherType field that tells the receiver whether the payload is IP, ARP or something else. Wikimedia Commons, Public domain

Two numbers there have outsized consequences. The 1500-byte payload ceiling is the standard MTU, and it is why IP has to fragment, why TCP negotiates an MSS of 1460, and why tunnelling protocols that add their own headers can mysteriously break large transfers. The 46-byte minimum is why tiny frames get padded — a legacy of collision detection on shared coaxial Ethernet that survives in the standard today.

Hubs vs. Switches​

An old-style hub is a dumb physical-layer repeater: every bit it receives on one port is echoed to every other port, and all connected devices share one collision domain — only one can successfully transmit at a time, and simultaneous transmissions collide. A switch operates at the data link layer: it learns which MAC address lives behind which port (by watching source addresses of incoming frames) and forwards each frame only out the port the destination actually lives on. Each switch port is its own collision domain, and (with full-duplex links) collisions are effectively eliminated on modern switched networks.

ARP: Resolving an IP Address to a MAC Address​

Before Host A can send an Ethernet frame to Host B on the same LAN, it needs B's MAC address — it only knows B's IP address. ARP solves this with a broadcast request and a unicast reply:

Every host keeps an ARP cache (a table of recently resolved IP→MAC mappings) so it doesn't have to broadcast a request for every single packet.

Practical Usage​

Inspecting your own machine's ARP cache and MAC address:

# View the local ARP cache (Linux/macOS)
$ ip neigh
192.168.1.1 dev eth0 lladdr aa:bb:cc:00:11:22 REACHABLE
192.168.1.20 dev eth0 lladdr 3c:22:fb:12:34:56 STALE

# View your own interface's MAC address
$ ip link show eth0
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP
    link/ether 00:1a:2b:3c:4d:5e brd ff:ff:ff:ff:ff:ff

REACHABLE means the entry was recently confirmed; STALE means it's cached but not recently verified — the kernel will re-ARP before using it if it's expired.

Edge Cases & Pitfalls​

ARP has no authentication

Any device on a LAN can reply to an ARP request (or send unsolicited ARP replies) claiming to own an IP address it doesn't. This is the basis of ARP spoofing/poisoning, used in man-in-the-middle attacks on local networks — a major reason switched, isolated VLANs and features like Dynamic ARP Inspection exist on managed switches.

  • MAC addresses are only meaningful within a single broadcast domain/LAN — they never appear in routing decisions once a packet crosses a router onto another network.
  • "Locally administered" MAC addresses (set in software, e.g. for MAC randomization on phones/laptops joining Wi-Fi) don't map to a real IEEE OUI — you can tell by checking the second-least-significant bit of the first byte.
  • A switch with a full MAC address table (CAM table) falls back to flooding frames to every port for unknown destinations — functionally acting like a hub for that traffic until it learns the mapping.

Comparisons​

DeviceOSI LayerForwards based onCollision domains created
HubPhysical (1)Nothing — repeats everything1 (shared)
SwitchData Link (2)MAC address (learned dynamically)1 per port
RouterNetwork (3)IP address / routing table1 per interface, and separates broadcast domains too

References​

Books & Videos​

  • Kurose & Ross, Computer Networking: A Top-Down Approach — link-layer chapter covers Ethernet, switching, and ARP in detail.
  • W. Richard Stevens, TCP/IP Illustrated, Volume 1 — classic packet-level walkthroughs, including ARP.
