CPU Caches
Overview
A CPU cache is a small amount of fast SRAM that sits between the core and main memory, holding recently-used data so most memory accesses never have to pay DRAM's latency. Modern CPUs use several levels of cache (L1, L2, L3) that trade size for speed, and on multicore chips, several copies of the same data can legally exist in different cores' caches at once — which means the hardware needs a protocol to keep them all consistent. This page covers how caches are organized, how hits/misses and writes are handled, and how multiple cores keep their caches coherent.
Core Concepts
| Term | Meaning |
|---|---|
| Cache line (block) | The fixed-size chunk (commonly 64 bytes) that a cache stores and moves as one unit — you can't fetch just one byte from DRAM into cache, you fetch its whole line. |
| L1 cache | Smallest, fastest cache, private per core; often split into separate instruction (L1i) and data (L1d) caches. |
| L2 cache | Larger and slower than L1, typically private per core (or per small cluster of cores). |
| L3 cache | Largest, slowest on-chip cache, typically shared across all cores on the chip. |
| Hit / miss | Whether the requested data was found in a given cache level or had to be fetched from a lower/slower level. |
| Associativity | How many cache locations a given memory address is allowed to map to (direct-mapped, set-associative, fully-associative). |
| Write-through / write-back | Whether writes go to main memory immediately, or only when the modified line is evicted. |
| Cache coherence | The guarantee that all cores observe a consistent view of memory even though each has its own cache copies. |
Architecture / Mechanism
Private vs. shared, and the levels

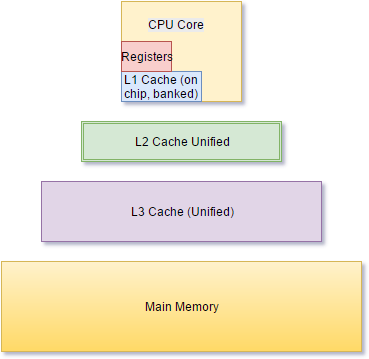

That is one core's view. On a multi-core chip the lower levels are shared:
L1 and usually L2 are private to a core — fast, but only that core sees them. L3 is shared across cores on the same chip, which is why cache coherence is needed: a shared L3 plus each core's private L1/L2 means the same data can legitimately be cached in multiple places simultaneously.
Mapping: where can an address go?
| Scheme | How an address maps to cache locations | Tradeoff |
|---|---|---|
| Direct-mapped | Each address maps to exactly one cache slot. | Simple, fast, but two addresses that map to the same slot constantly evict each other ("conflict misses"). |
| Set-associative (N-way) | Each address maps to one set containing N slots; it can go in any of the N. | Good balance — most real CPU caches (e.g., 8-way L1) use this. |
| Fully-associative | An address can go in any slot at all. | Fewest conflict misses, but expensive to search — used only for small structures (e.g., TLBs). |
Hits, misses, and writes
On a read, the CPU checks progressively larger/slower levels (L1 → L2 → L3 → DRAM) until it finds the line; every level it checks along the way is filled with a copy. On a write, two common policies exist:
- Write-through: every write goes to this cache and immediately down to the next level/memory — simple, always consistent, but generates more traffic.
- Write-back: writes only update the cache line and mark it dirty; it's written down to memory only when evicted. Fewer memory writes, but a dirty line must be flushed before eviction, and a crash can lose data that was never flushed.
Most modern CPU caches use write-back for L1/L2/L3, deferring memory traffic as long as possible.
Cache coherence: MESI
When multiple cores each have a private cache, the hardware needs a cache coherence protocol so that a write on one core is eventually visible to others, and no two cores disagree about a line's value. The most widely taught protocol is MESI, named for the four states a cache line can be in:
| State | Meaning |
|---|---|
| Modified | Present only in this cache, and dirty (different from memory) — this cache must supply this data to anyone else who wants it, and write it back before it can be discarded. |
| Exclusive | Present only in this cache, but clean (matches memory) — can silently become Shared or transition to Modified on a local write. |
| Shared | Present in this cache and possibly others too; clean — can be discarded at any time without writing back. |
| Invalid | This cache's copy is not valid and must be re-fetched before use. |
Cores communicate state changes by broadcasting/snooping bus transactions (e.g., "I'm about to write this line" invalidates other cores' copies). Real CPUs often extend MESI with an Owned state (MOESI) or similar, but MESI is the conceptual core every variant builds on.
Practical Usage
Cache-friendly code is mostly about respecting cache lines and locality:
// Cache-friendly: row-major traversal matches how a 2D array is laid
// out in memory, so each cache line loaded is fully used before moving on.
for (int i = 0; i < rows; ++i)
for (int j = 0; j < cols; ++j)
sum += matrix[i][j];
// Cache-unfriendly: column-major traversal of a row-major array jumps
// 'cols' elements between accesses, touching a new cache line almost
// every time and wasting most of each line that was fetched.
for (int j = 0; j < cols; ++j)
for (int i = 0; i < rows; ++i)
sum += matrix[i][j];
One important multicore-specific pitfall — false sharing, where independent variables placed on the same cache line cause unrelated writes from different cores to repeatedly invalidate each other's copies via the coherence protocol above — is covered with a worked padding example in Multicore & Parallelism; it's a direct, practical consequence of the MESI mechanics described on this page.
Edge Cases & Pitfalls
Even when cores touch different variables, if those variables share a cache line, MESI's invalidation traffic forces the line to bounce between cores' caches on every write — see Multicore & Parallelism for the false-sharing example and fix.
- A cache miss doesn't just cost time for one load — it can stall the pipeline waiting on data (see Pipelining), so cache misses in hot loops are often the real reason "CPU-bound" code is slow.
- Associativity is a tradeoff, not a free win: fully-associative lookups are expensive to implement in hardware, which is why L1/L2/L3 use set-associativity rather than fully-associative designs despite the latter having fewer conflict misses.
- Write-back caches mean memory isn't always immediately up to date — this matters for DMA, memory- mapped I/O, and multi-threaded code that assumes writes are instantly visible everywhere.
Comparisons
| Cache level | Typical scope | Relative size | Relative latency |
|---|---|---|---|
| L1 | Private per core | Smallest | Fastest |
| L2 | Private per core (or small cluster) | Medium | Medium |
| L3 | Shared across cores on chip | Largest on-chip | Slowest on-chip |
| DRAM | Shared, off-chip | Much larger than L3 | Much slower than any cache level |
| Write policy | Memory updated | Traffic | Risk |
|---|---|---|---|
| Write-through | On every write | Higher | Lower (memory always current) |
| Write-back | On eviction of a dirty line | Lower | Higher (data only in cache until flushed) |
References
- MESI protocol — Wikipedia — state definitions and transitions.
- Patterson & Hennessy, Computer Organization and Design — cache organization, associativity, and coherence chapters.
Books & Videos
- Ulrich Drepper, "What Every Programmer Should Know About Memory" — detailed cache-line and coherence discussion.
- Bryant & O'Hallaron, Computer Systems: A Programmer's Perspective — "The Memory Hierarchy" chapter, including cache-friendly code examples.
- Computerphile, "How CPU Memory & Caches Work" — accessible walkthrough of multi-level caching.
