TLS and Encryption Basics

Overview​

TLS (Transport Layer Security) is what turns HTTP into HTTPS — and secures plenty of other protocols besides (SMTP, database connections, and more). It runs on top of a reliable transport (usually TCP, or QUIC for HTTP/3) and gives the two endpoints of a connection three distinct guarantees that plain, unencrypted traffic has none of.

Core Concepts​

TermMeaning
ConfidentialityOnly the intended recipient can read the data — achieved via encryption.
IntegrityAny tampering with data in transit is detectable — achieved via authenticated encryption/MACs.
AuthenticationThe client can verify it's actually talking to the server it intended to (not an impostor) — achieved via certificates.
CertificateA signed document binding a public key to an identity (e.g., a domain name), issued by a CA.
Certificate Authority (CA)A trusted organization that verifies identity and signs certificates.
Chain of trustThe sequence of signatures from a server's certificate up to a root CA that the client already trusts.

Architecture / Mechanism​

What TLS Provides, Conceptually​

TLS doesn't change what HTTP says — it wraps the entire exchange (including headers, method, path, and cookies) in an encrypted, tamper-evident channel between exactly the two parties who negotiated it.

Two key operations underneath​

Public-key encryption solves the problem of sending a secret to someone you have never met, using two keys where what one locks only the other opens:

Bob encrypts the message Hello Alice with Alice's public key, producing ciphertext that travels to Alice, who decrypts it back to plaintext with her private key
Encryption for confidentiality: anyone may hold Alice's public key and send her a secret, but only her private key can recover it. Wikimedia Commons, Public domain

Run the same key pair the other way and you get a signature instead — proof of who sent something, rather than secrecy about what it says:

Signing: data is hashed, the hash is encrypted with the signer's private key to form a signature, and both are attached. Verification: the receiver hashes the data, decrypts the signature with the signer's public key, and compares the two hashes
Signing hashes the data and encrypts the hash with the *private* key; verification decrypts with the *public* key and compares. Equal hashes prove both authorship and that nothing was altered. Wikimedia Commons, CC BY-SA 3.0

Symmetric encryption — the older idea — uses one shared key for both directions:

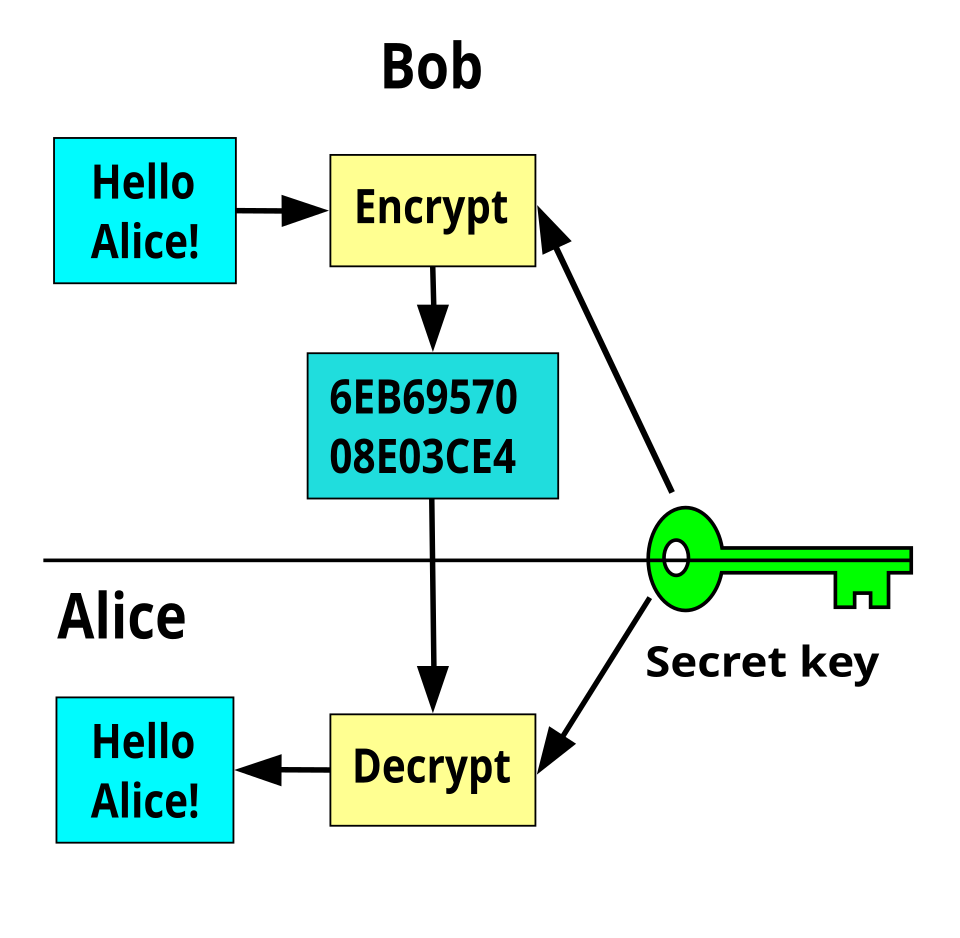

Bob encrypts a message with a shared secret key and Alice decrypts the ciphertext with the identical shared secret key
Symmetric encryption: fast and simple, but both parties must already share the same secret key — which is the exact problem public-key cryptography exists to solve. Wikimedia Commons, CC0
Why TLS uses both asymmetric and symmetric cryptography

Public-key operations are orders of magnitude slower than symmetric ones, so TLS uses them only during the handshake — to authenticate the server and agree on a shared secret. Every byte of actual traffic afterwards is protected with a fast symmetric cipher (AES-GCM, ChaCha20-Poly1305) keyed from that secret. The expensive maths happens once per connection, not once per byte, which is the other reason connection reuse matters so much.

The TLS 1.3 Handshake (High Level)​

TLS 1.3 significantly simplified the handshake compared to TLS 1.2, cutting it from two round trips down to one (with an optional 0-RTT resumption mode for repeat connections to the same server):

The client sends its Diffie-Hellman key share speculatively in the very first message (guessing a commonly-supported group like X25519), which is what lets the server respond with everything needed to finish the handshake in a single round trip — a deliberate design change from TLS 1.2, where the client had to wait for the server to choose a cipher suite before sending its own key material.

Certificates and the Chain of Trust​

Your OS/browser ships with a built-in list of trusted root CAs. A server presents its own certificate plus any intermediate certificates needed to chain back up to one of those trusted roots. If every signature in the chain checks out, and the certificate's domain name matches the one being requested, the client trusts it — without ever having communicated with the CA directly during the handshake itself.

Practical Usage​

Inspecting a server's certificate chain from the command line:

$ openssl s_client -connect example.com:443 -servername example.com </dev/null 2>/dev/null | openssl x509 -noout -subject -issuer -dates
subject=CN = example.com
issuer=C = US, O = DigiCert Inc, CN = DigiCert Global G2 TLS RSA SHA256 2020 CA1
notBefore=Jan 15 00:00:00 2025 GMT
notAfter=Feb 15 23:59:59 2026 GMT

curl -v also reports the negotiated TLS version and cipher, and will fail outright with a certificate error if the chain doesn't validate:

$ curl -v https://example.com/ -o /dev/null 2>&1 | grep -i 'SSL connection\|subject:'
* SSL connection using TLSv1.3 / TLS_AES_128_GCM_SHA256
*  subject: CN=example.com

Edge Cases & Pitfalls​

Mixed content quietly breaks HTTPS's guarantees

A page served over HTTPS that loads even one resource (a script, an image, a stylesheet) over plain HTTP reopens the door to man-in-the-middle tampering — an attacker can modify that one HTTP resource to attack the otherwise-secure page. Modern browsers block "active" mixed content (scripts, iframes) by default, but "passive" mixed content (images) may still load with only a warning.

  • A valid certificate proves the server controls the domain named in the certificate — it says nothing about whether that server/domain is trustworthy or legitimate otherwise (phishing sites routinely have perfectly valid HTTPS certificates for their own look-alike domains).
  • Certificate expiry is a genuinely common outage cause — an expired certificate fails validation even if every other part of the server is working correctly.
  • TLS session resumption and 0-RTT data trade a small amount of replay-attack risk for latency — appropriate for idempotent requests, riskier for anything with side effects.
  • HTTPS-everywhere isn't just about hiding content from eavesdroppers: without it, any on-path network (coffee shop Wi-Fi, a compromised router, an ISP) can inject or alter content, not just read it.

Comparisons​

AspectPlain HTTPHTTPS (HTTP + TLS)
ConfidentialityNone — readable by anyone on pathEncrypted
IntegrityNone — modifiable in transitTamper-evident
Server authenticationNoneVerified via certificate chain
Handshake round trips added01 (TLS 1.3), 2 (TLS 1.2), or 0 for TLS 1.3 resumption

References​

  • IETF, RFC 8446 — The Transport Layer Security (TLS) Protocol Version 1.3.
  • IETF, RFC 5280 — Internet X.509 Public Key Infrastructure Certificate and CRL Profile (the certificate format TLS relies on).

Books & Videos​

  • Ilya Grigorik, High Performance Browser Networking (free online) — has a dedicated TLS chapter covering the handshake and its performance implications.
  • Kurose & Ross, Computer Networking: A Top-Down Approach — security chapter covers the cryptographic building blocks TLS is built from.
  • Cloudflare's engineering blog has well-regarded, technically accurate articles explaining TLS handshake internals and certificate validation.
